Comes standard with

- 8 inch auger
- Hydraulic drive floor auger
- Top shaft spring loaded
- Roll tarp
- Clean out doors

Ezybin.



also called Grouper, Grouper Bin, Fertilizer Bin, Seed Bin, 5 in 1 Bin, 3 in 1 Bin

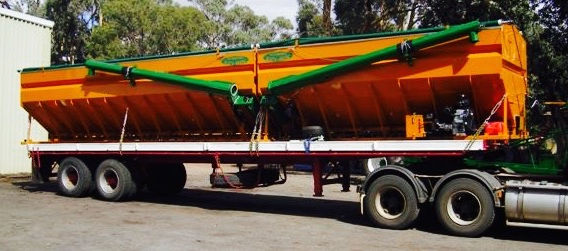

The Norrish Ezy Bin has, simplicity, strength, capacity and safety as the main criteria in the design of this machine.

The Norrish Ezy Bin comes in sizes 14ft to 45ft. Standard sizes are 16ft (4.9mtrs), 18ft (5.5mtrs), 20ft (6.1mtrs), and 24ft (7.3mtrs). The 20 & 24ft machines are available with a third bin compartment.

The simplicity of construction allows us to be flexible in adjusting the bin sizes and compartment percentage break up to suit your requirements.

ANY SIZE BIN AND COMPARTMENT COMBINATION CAN BE MADE TO SUIT YOUR SPECIFIC REQUIREMENTS

The Norrish Ezy Bin is totally hydraulic driven, powered by a 23hp petrol motor, direct coupled to a hydraulic pump running four hydra motors, with a control valve to operate the folding of the eight-inch augers.

The eight (8) inch auger barrels have a replaceable poly liner, which can be tailor made to length to suit your application and air seeder requirements. Eight inch auger barrels have a maximum capacity of 1/2 to 1 ton per minute each, the bin motor has enough power to operate both augers at once, thus giving you a maximum filling capacity of 1 - 2 ton per minute while both augers are operating. The auger speeds are directly related to your petrol engine revs allowing you to control the filling speed to your requirements.

With this faster filling capacity, you will be able to sow more acres per day making your seeding operation far more efficient.

AUGER LENGTHS CAN BE MADE TO SUIT YOUR SPECIFIC REQUIREMENTS

The operation of the bin is controlled by a cordless remote, which fits into the palm of your hand with the capacity to control the bin up to 50 meters (150ft) away allowing the operator to check and perform other duties while his air seeder is filling.

Roll tarp comes standard.
